FMS RAM Shield
FMS RAM Shield

This is a shield to be fitted to a Flight Motion Simulator (FMS) covered in blue Radar Absorbing Material (RAM).
The yoke of the FMS has very high rotational acceleration so the thin shield needs to be exceptionally strong, hence it is constructed in Carbon Fibre.
The three images show the 3D model in green, the carbon fibre component itself and then the component with blue RAM bonded on.

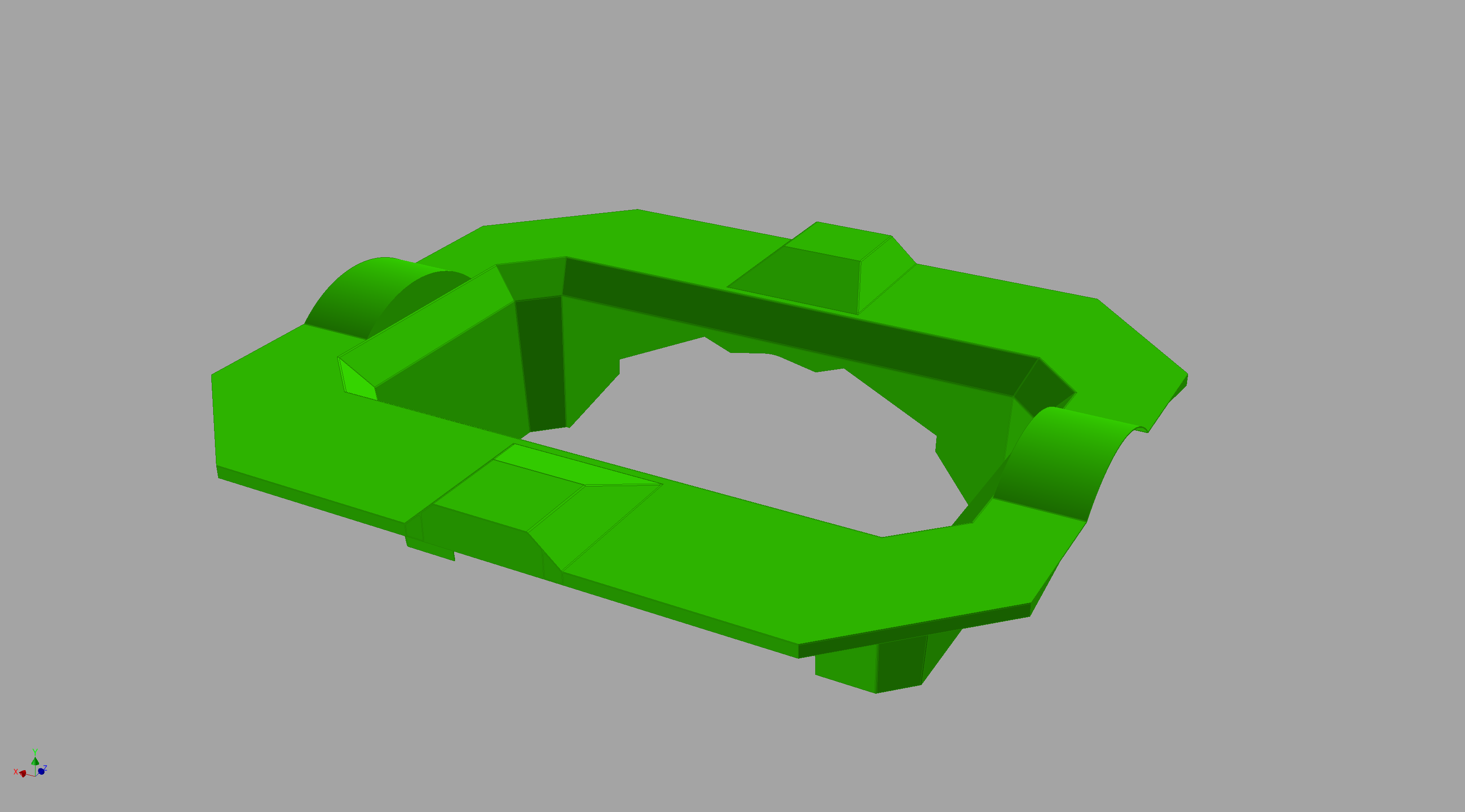

FMS RAM Shield

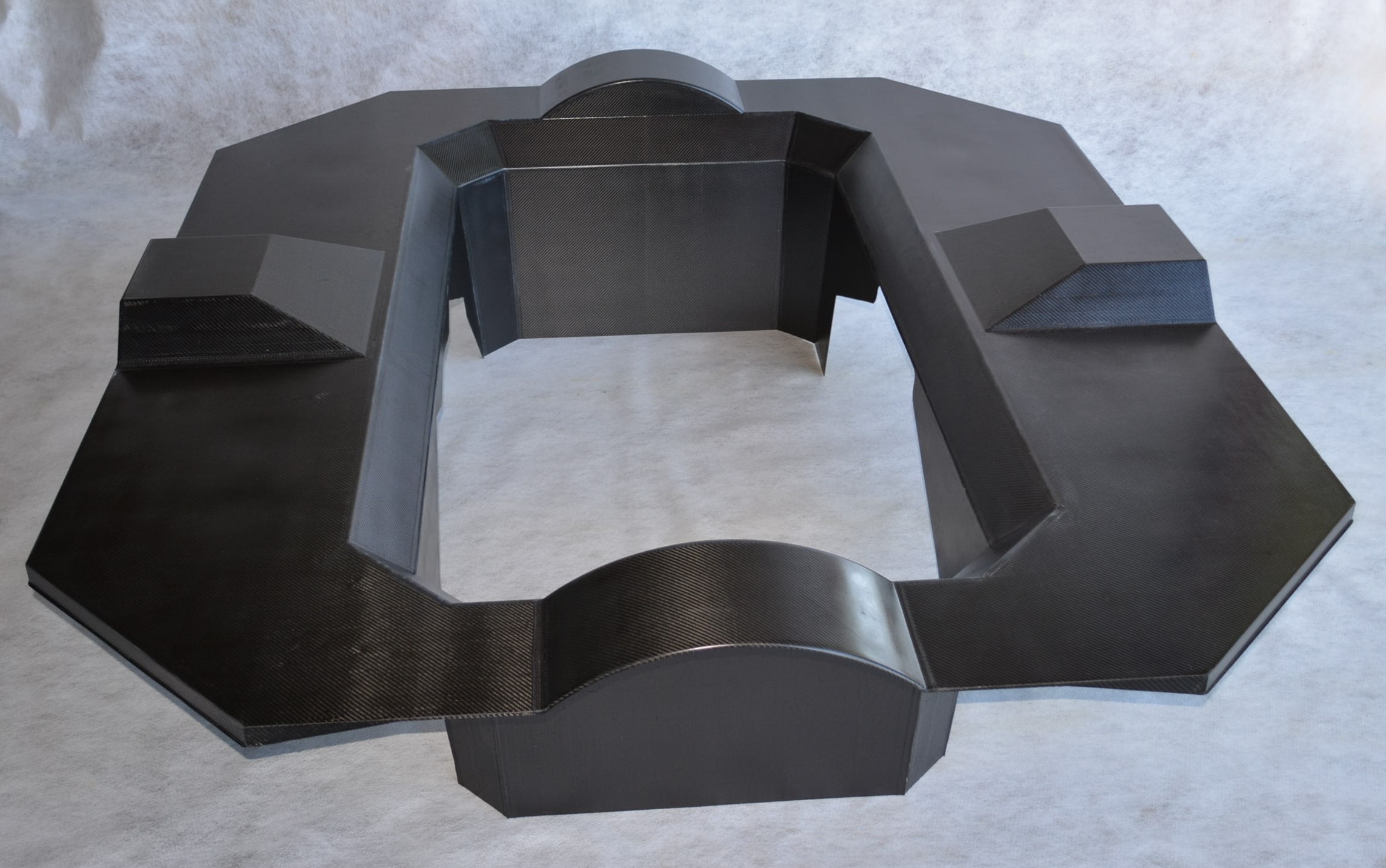

FMS RAM Shield Production

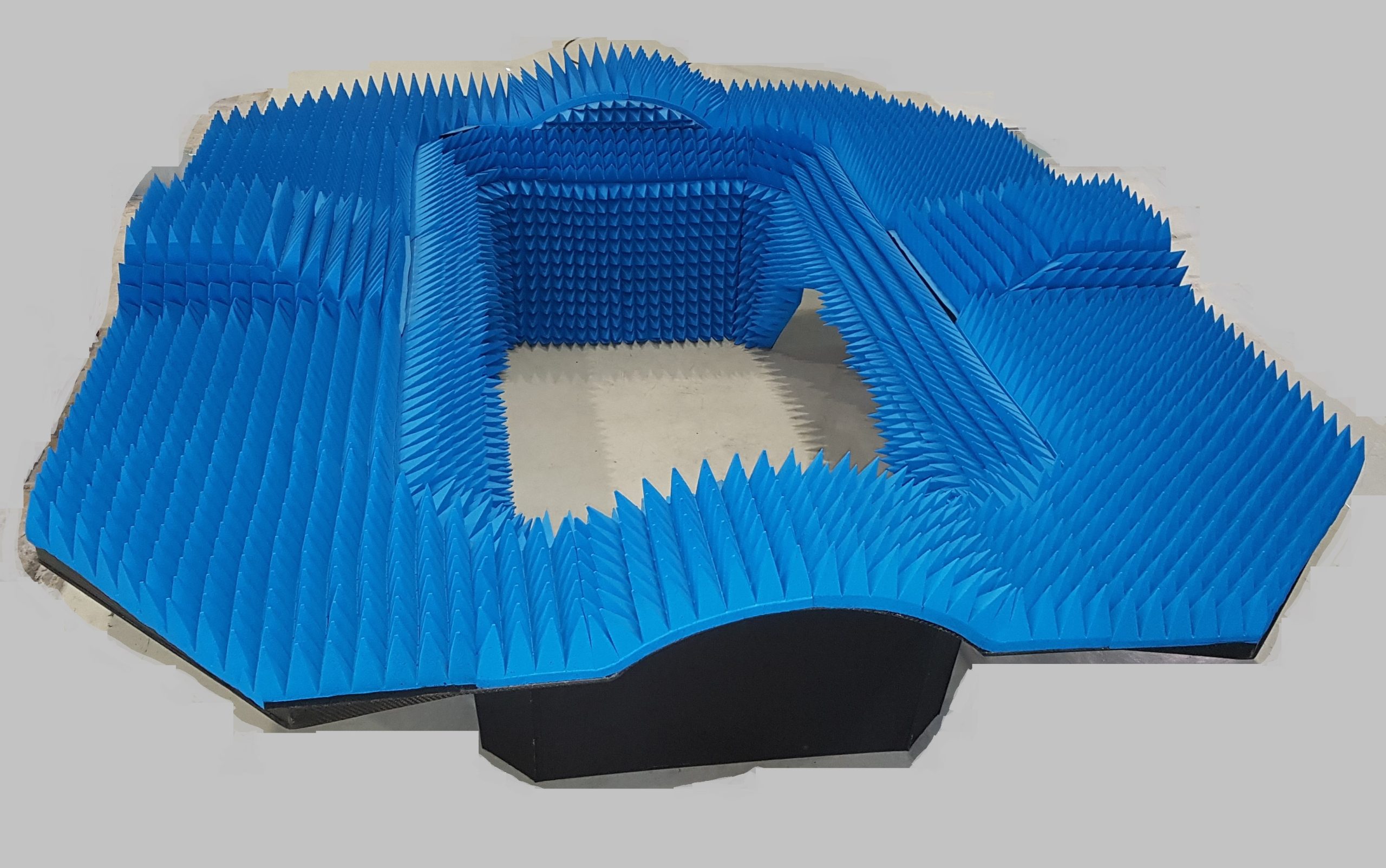

Completed FMS Shield
